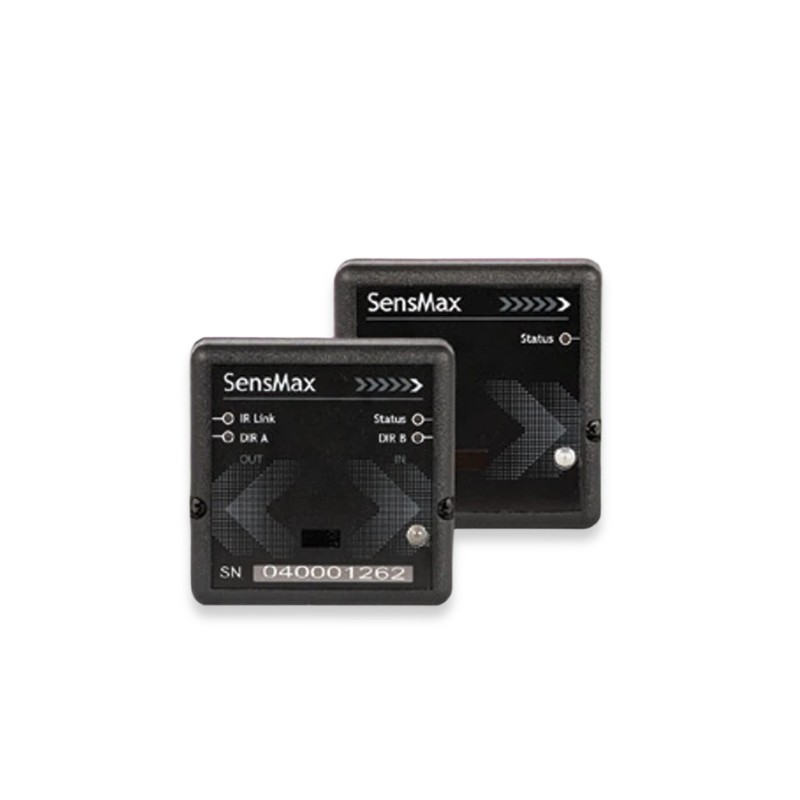

SensMax D3 LR TS SensMax Radio People Counter
SKU |
SM-D3-LR-TS |
incl. 19.0% VAT plus Shipping costs
The SensMax D3 TS is a bidirectional infrared people-counting sensor designed for real-time tracking of visitor traffic in public facilities, retail stores, and shopping malls. It uses a 3-beam infrared barrier and reliably detects both IN and OUT movements. The sensor stores up to 2,000 events and transmits data in real time via a gateway to the SensMax Cloud, including 5-minute intervals and API export options.
The wireless range varies depending on the model: The D3 LR TS version (868 MHz) offers a range of up to approximately 150 m and is suitable for medium-sized installations. The D3 SLR TS version (868 MHz) has a range of up to approximately 800 m and is designed for large buildings or widely distributed systems.
Note: SensMax devices communicate via a proprietary, manufacturer-specific protocol (868 MHz/2.4 GHz)—not LoRaWAN. Sensors, gateways, and displays can only be combined within the SensMax ecosystem, with matching range types (LR only with LR, etc.) and the SensMax Cloud for data analysis.
| Equipment | |
|---|---|
| antenna | internal |
| sensors | manipulation, people counter |
| Communication | |
| connectivity | SensMax Radio |
| Power supply | |
| power supply | battery, included, replaceable |
| battery details | Alkaline, nicht aufladbar, AA |
| number of batteries | 2 |
| General | |
| variants | LR or SLR |
| Others | |
| Brand | SensMax |
The sensor is designed for bi-directional people counting and occupancy tracking in public premises, retail stores, and shopping malls.
The Long Range (LR) variant supports a connectivity range of up to 150m, while the Super Long Range (SLR) variant extends this distance up to 800m.
The device uses a bi-directional tracking principle based on three infrared beams with a 6-degree angle to monitor crossing direction.
Yes, the sensor features internal memory that can store up to 2,000 records.
The unit is powered by standard AA batteries, which provide an operational lifetime of up to 1 year.
The sensor offers 95% accuracy at a 2m distance, with a variance of approximately 1% per meter for distances beyond 2m.
The optimal passage width is between 1m and 5m, though the device can support a maximum width of up to 9m.
The sensor includes tamper protection that triggers a sound alarm and sends a status report to the management software if disturbed.
