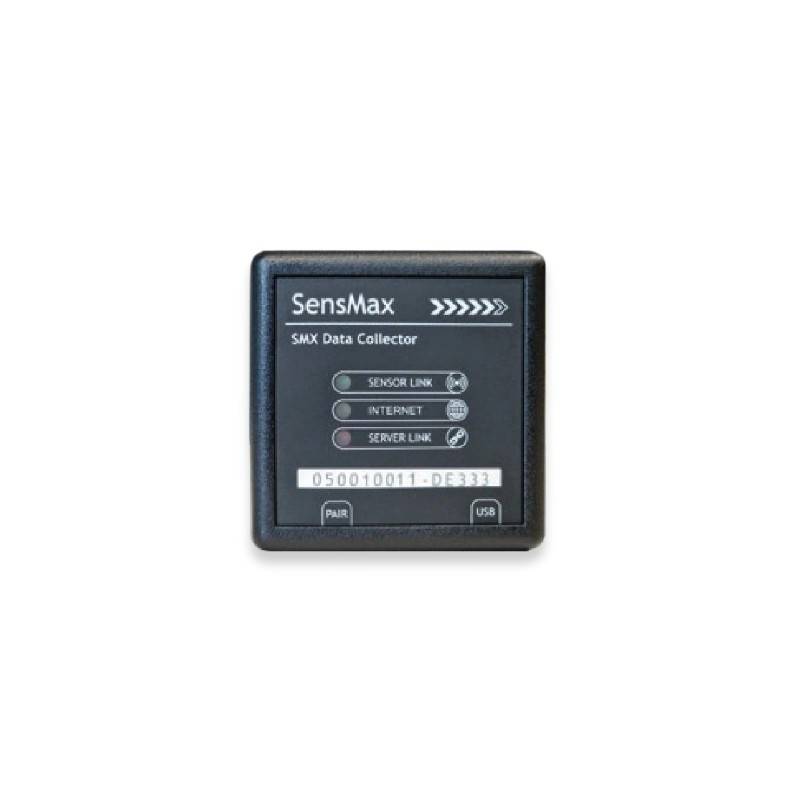

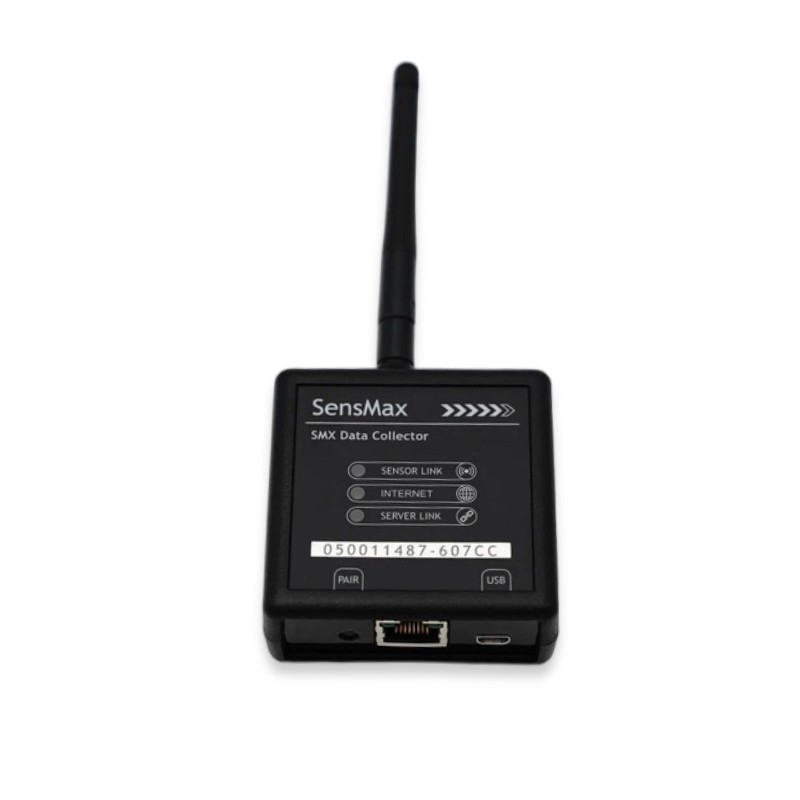

The SensMax SMX Data Collector is a powerful solution for wireless data collection from SensMax visitor counters and loyalty buttons. The devices collect sensor data wirelessly and reliably transmit it via Wi-Fi or Ethernet to central servers or IoT platforms. Thanks to MQTT support, the SensMax SMX is ideal for smart buildings, retail analytics, visitor counting, and modern IoT applications. Depending on the model, the Data Collector offers a range of up to 800 meters and can manage up to 30 sensors simultaneously. The integrated web interface simplifies configuration and management. With real-time data transmission and flexible network options, the SensMax SMX offers an efficient and scalable monitoring solution.
Note: SensMax devices communicate via a proprietary, manufacturer-specific protocol (868 MHz/2.4 GHz)—not LoRaWAN. Sensors, gateways, and displays can only be combined within the SensMax ecosystem, with matching range types (LR only with LR, etc.) and the SensMax Cloud for data analysis.
Note: SensMax devices communicate via a proprietary, manufacturer-specific protocol (868 MHz/2.4 GHz)—not LoRaWAN. Sensors, gateways, and displays can only be combined within the SensMax ecosystem, with matching range types (LR only with LR, etc.) and the SensMax Cloud for data analysis.
| Equipment | |
|---|---|
| antenna | internal |
| Communication | |
| gateway-backhaul | ethernet, Wi-Fi |
| interfaces | Ethernet, WLAN |
| connectivity | SensMax Radio |
| Power supply | |
| power supply | power supply, USB |
| General | |
| variants | LR or SLR or Pro |
| Others | |
| Brand | SensMax |
DataSheet_SensMax-SMX_EN.pdf
Download
