Note: SensMax devices communicate via a proprietary manufacturer-specific protocol (868 MHz/2.4 GHz)—not LoRaWAN. Sensors, gateways, and displays can only be combined within the SensMax ecosystem, with the appropriate range type (LR only with LR, etc.) and the SensMax Cloud for data analysis.
| Equipment | |
|---|---|
| antenna | internal |
| sensors | Temperatur (verschiedene) |
| Communication | |
| connectivity | SensMax Radio |
| frequency | EU868 |
| Power supply | |
| power supply | battery, included, replaceable |
| number of batteries | 2 |
| battery details | Alkaline, nicht aufladbar |
| Others | |
| Brand | SensMax |

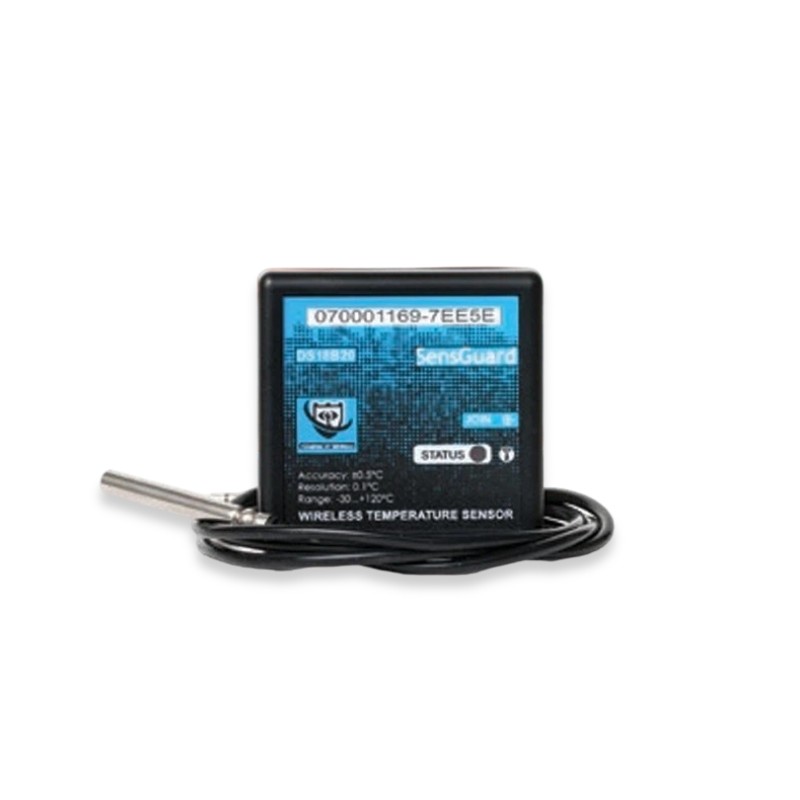

The sensor is designed for temperature monitoring across a wide range, from -30°C up to +120°C.
It is suitable for a variety of applications including freezing and cooling equipment, food storage, data centers, HVAC systems, smart buildings, and laboratories.
The sensor comes equipped with a 1.5-meter long temperature probe.
The device offers high-precision monitoring with a measurement accuracy of ±0.5°C and a resolution of 0.1°C.
The sensor is configured with a measurement period of 5 minutes.
The sensor is powered by 2 standard AAA batteries, which provide a battery life of up to 5 years.
Yes, the device is designed with replaceable batteries for easier maintenance.
The sensor supports a wireless communication range of up to 150 meters.
The device measures 67x67x25mm and is easily installed using double-sided adhesive tape.
Data delivery is handled through a LAN or Internet gateway.
