SensMax SensGuard MCP9808 SensMax Radio Temperature Sensor

Price:

43.91 €
SensMax SensGuard MCP9808 SensMax Radio Temperature Sensor
  2. Shop
  3. SensMax SensGuard MCP9808 SensMax Radio Temperature Sensor
New

SensMax SensGuard MCP9808 SensMax Radio Temperature Sensor

https://iot-shop.de/web/image/product.template/11736/image_1920?unique=726cfab

43.91 € 43.91 EUR 43.91 €

Not Available For Sale

  • Brand
  • connectivity
  • power supply
  • battery details
  • sensors
  • enclosure protection class
  • antenna

This combination does not exist.

Contact Us
SKU
 SM-MCP9808

incl. 19.0% VAT plus Shipping costs

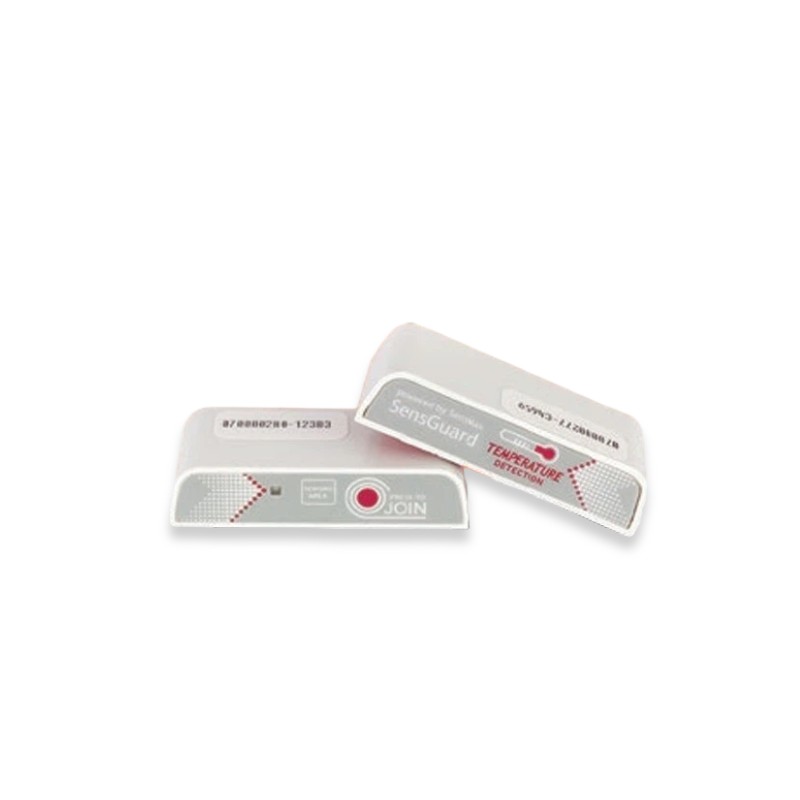

The SensMax SensGuard MCP9808 wirelessly monitors temperatures ranging from −20 °C to +55 °C with an accuracy of ±0.5 °C. Every 5 minutes, the compact sensor (55 × 25 × 12 mm) transmits its readings via 868 MHz radio with AES128 encryption to the SensGuard TCP LRX2 gateway—with a range of up to 150 m. Thanks to its IP65 rating, it is suitable for both indoor and outdoor use in damp and dusty environments. The built-in Li-ion battery (400 mAh) ensures up to 5 years of maintenance-free operation, and installation using double-sided tape takes just minutes.

Note: SensMax devices communicate via a proprietary, manufacturer-specific protocol (868 MHz/2.4 GHz)—not LoRaWAN. Sensors, gateways, and displays can only be combined within the SensMax ecosystem, with matching range types (LR only with LR, etc.) and the SensMax Cloud for data analysis.
Equipment
sensors ambient temperature
antenna internal
Communication
connectivity SensMax Radio
Power supply
power supply battery, included, not replaceable
battery details Lithium, nicht aufladbar
Certifications
enclosure protection class IP65
Others
Brand SensMax
DataSheet_SensMax_MCP9808 _EN.pdf
Download
What are the primary temperature range and environmental protection capabilities of this sensor?

This wireless sensor is designed for remote temperature monitoring within a range of -20°C to +55°C. It is housed in an IP65-rated case, making it both waterproof and dust-protected for use in demanding environments.
What are some typical applications for this monitoring device?

Common applications include temperature tracking in warehouses, freezing and cooling facilities, food storage areas, data centers, HVAC systems, and smart building management.
How precise are the temperature measurements provided by the sensor?

The sensor offers high-precision monitoring with a measurement accuracy of ±0.5°C and a resolution of 0.1°C.
How frequently does the device record temperature data?

The device is programmed to take temperature measurements every 5 minutes.
What type of battery is used and how long does it last?

The sensor features a built-in, non-flammable 400 mAh Li-Ion battery. It is designed for long-term use with a battery life of up to 5 years, though the battery is non-replaceable.
What is the maximum wireless communication range for this device?

The sensor can communicate wirelessly over a range of up to 150 meters.
How is the sensor installed and what are its dimensions?

The device is compact, measuring 55x25x12 mm. It features an easy wireless installation process where it can be stuck to any surface using double-sided adhesive tape.
