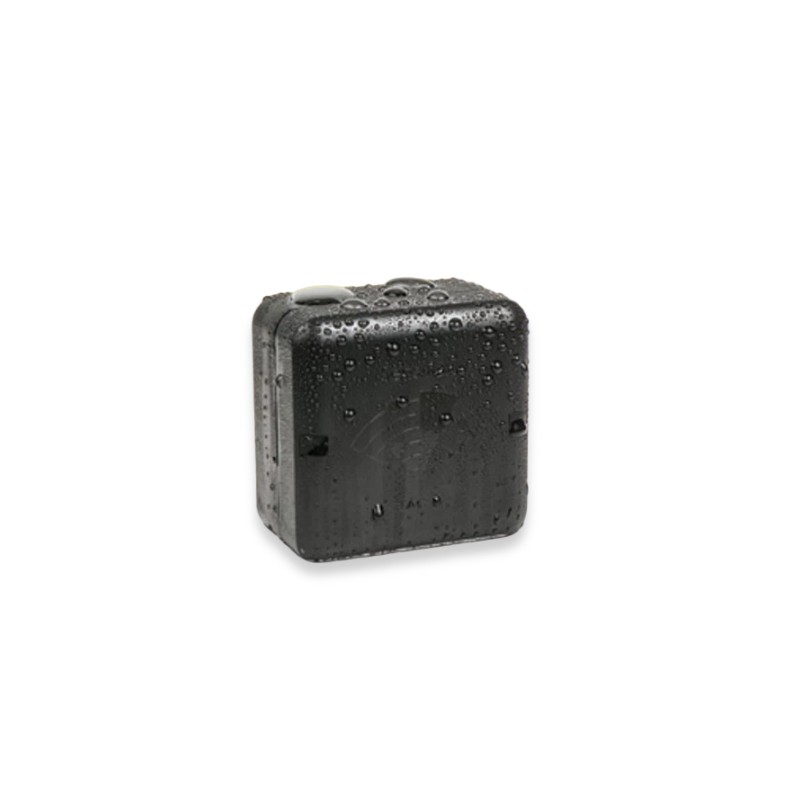

SensMax TAC-B 3D-WP Wi-Fi Outdoor People Counter (Radar)

Price:

832.88 €
SensMax TAC-B 3D-WP Wi-Fi Outdoor People Counter (Radar)
  2. Shop
  3. SensMax TAC-B 3D-WP Wi-Fi Outdoor People Counter (Radar)
New

SensMax TAC-B 3D-WP Wi-Fi Outdoor People Counter (Radar)

https://iot-shop.de/web/image/product.template/11755/image_1920?unique=4eece9f

832.88 € 832.88 EUR 832.88 €

Not Available For Sale

  • sensors
  • Brand
  • enclosure protection class
  • antenna
  • power supply
  • connectivity

This combination does not exist.

Contact Us
SKU
 SM-TAC-B 3D-WP

incl. 19.0% VAT plus Shipping costs

The SensMax TAC-B 3D-WP is a high-performance mmWave radar sensor designed for precise outdoor people counting and visitor analysis. It is ideal for monitoring pedestrian and bicycle traffic in cities, parks, and on public paths. Thanks to 60 GHz radar technology, the sensor operates reliably in all lighting and weather conditions, including rain, fog, or darkness. It detects movement in both directions and supports up to five individually configurable counting lines and zones. With a range of up to 10 m and a 120° field of view (approx. 100 m²), it delivers precise real-time data. Its rugged IP65 rating enables outdoor use. Data is transmitted to the SensMax Cloud or third-party applications via Wi-Fi, MQTT, and API. GDPR-compliant, camera-free, and ideal for smart city and infrastructure analytics.
Equipment
sensors people counter
antenna internal
Communication
connectivity WiFi
Power supply
power supply power supply
Certifications
enclosure protection class IP65
Others
Brand SensMax
DataSheet_SensMax_TAC-B 3D-WP_EN.pdf
Download
What types of traffic can this sensor detect in outdoor settings?

The sensor is specifically designed for bi-directional counting of pedestrians and cyclists in various outdoor environments like city streets, parks, and walking trails.
How does the technology perform under extreme weather or varying light conditions?

Based on 60 GHz mmWave radar technology, the sensor works reliably in fog, rain, smoke, and snow. It is also unaffected by lighting conditions, performing consistently in bright sunlight, evening shadows, or complete darkness.
Can I define specific areas for counting or occupancy monitoring?

Yes, you can configure up to 5 user-defined counting lines and zones. The sensor supports occupancy monitoring for individual zones or across a group of sensors.
What is the detection range and the recommended installation setup?

The sensor has a detection range of up to 10 meters and a 120-degree viewing angle, covering an area of up to 100 m2. It is designed for sidewall or pillar mounting at a height of 2.5 meters.
Does the sensor collect any personally identifiable information?

No, the device is fully GDPR compliant. It uses radar for anonymous detection and does not perform any filming, ensuring user privacy.
How can I access the data and integrate it with other platforms?

The sensor delivers data in real-time over WiFi and supports the SensMax cloud reporting portal with API export. It also provides protocol support for MQTT, IFTTT, and Shelly webhooks.
Does the device have local storage or backup options?

The device includes a 16GB Micro SD card for local storage and backup.
What are the physical durability and power requirements for the device?

The sensor features an IP65-rated waterproof and dustproof polycarbonate case. It requires a 12VDC/0.5A power supply for operation.
