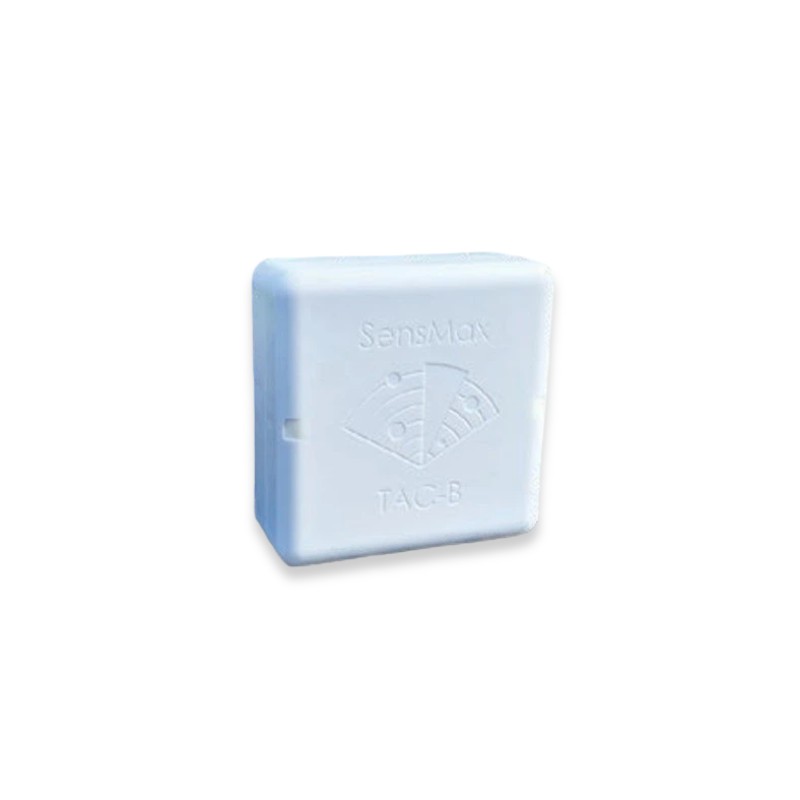

SensMax TAC-B 4G Outdoor People Counter (Radar)

Price:

892.38 €
SensMax TAC-B 4G Outdoor People Counter (Radar)
  2. Shop
  3. SensMax TAC-B 4G Outdoor People Counter (Radar)
New

SensMax TAC-B 4G Outdoor People Counter (Radar)

https://iot-shop.de/web/image/product.template/11756/image_1920?unique=7f73eba

892.38 € 892.38 EUR 892.38 €

Not Available For Sale

  • Brand
  • enclosure protection class
  • sensors
  • connectivity
  • power supply
  • antenna

This combination does not exist.

Contact Us
SKU
 SM-TAC-B 4G

incl. 19.0% VAT plus Shipping costs

The SensMax TAC-B 4G is a smart mmWave radar people-counting sensor for smart city and outdoor applications. It combines 60 GHz radar technology with an integrated 4G modem, enabling direct, real-time data transmission to the SensMax Cloud—without the need for additional infrastructure. The sensor reliably detects pedestrians and cyclists under all lighting and weather conditions, including rain, fog, and darkness. With up to five freely definable counting lines and zones, it provides precise motion and occupancy data. Its rugged IP65 rating and temperature range of -20°C to +75°C ensure reliable outdoor operation. It also supports MQTT, API, IFTTT, and webhooks for flexible system integration. GDPR-compliant and camera-free, the sensor is ideal for smart cities, traffic analysis, and public infrastructure.
Equipment
sensors people counter
antenna internal
Communication
connectivity 4G
Power supply
power supply power supply
Certifications
enclosure protection class IP65
Others
Brand SensMax
DataSheet_SensMax_TAC-B-4G_EN.pdf
Download
What are the primary applications for this radar sensor?

The sensor is an all-in-one kit designed for smart city environments, specifically for counting pedestrians and cyclists, monitoring occupancy, and delivering real-time data.
Is the device suitable for outdoor use?

Yes, the sensor is designed for outdoor use. It features an IP65-rated polycarbonate housing and is built to operate in temperatures ranging from -20°C to +75°C.
How many counting zones can be configured on a single device?

The sensor supports bi-directional movement tracking and allows users to define up to 5 specific counting lines and zones for monitoring people or occupancy.
What is the recommended installation setup for the sensor?

The device should be installed at a height of 2.5 meters and can be mounted on a sidewall or a pillar.
What is the detection range and coverage area of the sensor?

The sensor provides a 120° viewing angle with a detection range of 10 meters, covering a total detection area of 100 square meters.
How does the sensor ensure privacy and GDPR compliance?

The sensor is 100% GDPR compliant as it uses radar for anonymous detection. It does not perform any filming or video recording, ensuring no personal imagery is captured.
What options are available for data reporting and integration?

The device supports cloud reporting and API exports, and can integrate with various platforms via MQTT, Webhooks, IFTTT, Shelly, Telegram, and Email.
Does the sensor work without an active 4G connection?

Yes, the device features an offline operation mode and includes a 16GB Micro SD card for internal storage and data backup when a connection is unavailable.
