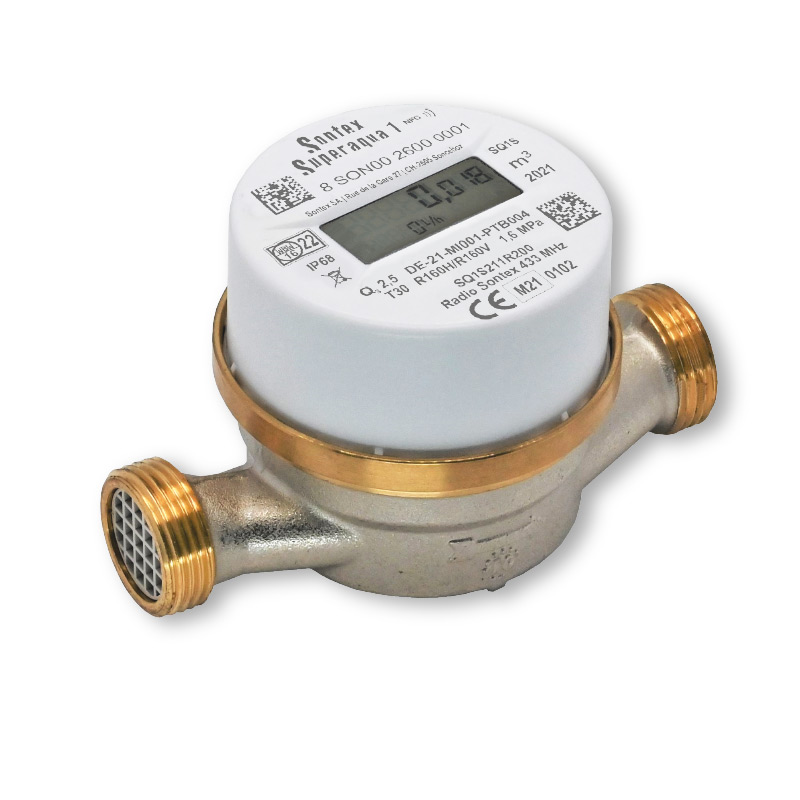

Sontex Superaqua 1 Electronic LoRaWAN Single Jet Dry Dial Water Meter
SKU :
SX-SQ1S11-2L0excl. 19% VAT plus Shipping costs
The Superaqua 1 range of compact electronic water meters consists of both single-jet and multi-jet meters for measuring capsules of the latest generation. It is used in submetering, home automation and local and long-distance water supply systems to measure the consumption of cold and hot water for individual billing. The Superaqua 1 is available in different versions. It measures water volume in the range of +0.1°C to +90°C and meets the requirements of the European Measuring Instruments Directive (MID) 2014/32/EU and the International Organisation of Legal Metrology OIML R49.
| Communication | |
|---|---|
| Frequency | EU868 |
| Interfaces | |
| Interfaces | NFC |
| General | |
| Variants | L: 80 mm | F: 2.5 m3/h | D: DN 15 mm or L: 110 mm | F: 2.5 m3/h | D: DN 15 mm or L: 130 mm | F: 2.5 m3/h | D: DN 15 mm or L: 110 mm | F: 2.5 m3/h | D: DN 20 mm or L: 130 mm | F: 4 m3/h | D: DN 20 mm |
| Variants | Kaltwasser or Warmwasser |
| Certifications | |
| Certifications | IP68 |
