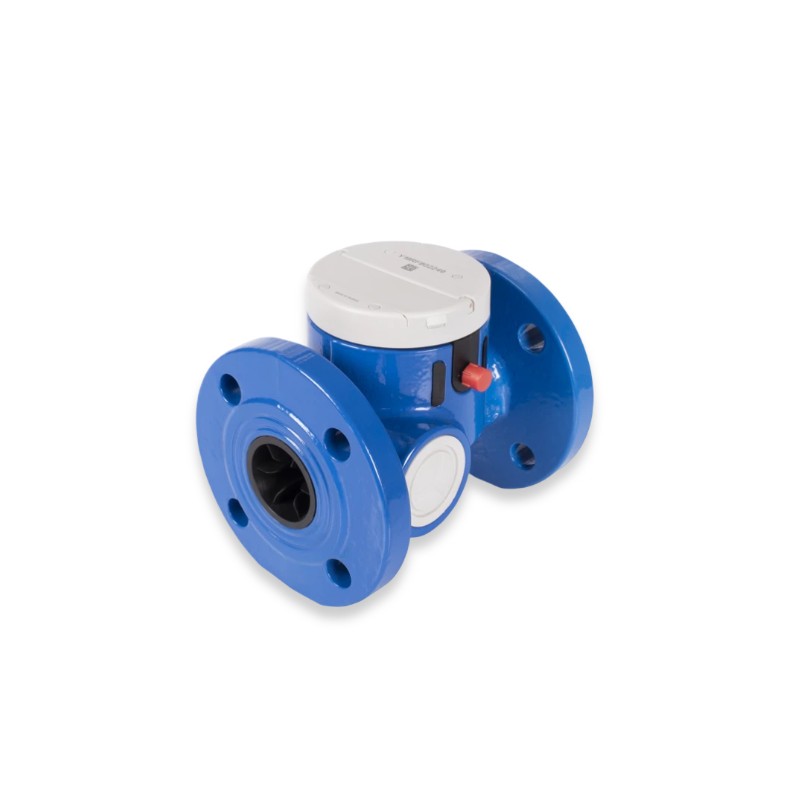

Sontex Superaqua 5 LoRaWAN Large-Capacity Water Meter
SKU |
SX-SQ5U4101MSDE01 |
incl. 19.0% VAT plus Shipping costs
The Sontex Superaqua 5 is a static ultrasonic large-capacity water meter for municipal supply networks and commercial applications in sizes ranging from DN50 to DN200. The mirrorless ultrasonic measurement principle ensures long-term stability and highly accurate consumption measurement without moving parts for bidirectional flow. Special feature: The integrated MultiCom mode transmits data simultaneously via LoRaWAN and wM-Bus 868 MHz—without the need for separate communication modules. Configuration via NFC using the ParamApp; battery life of up to 16 years. Drinking water approvals according to ACS, SVGW, WRAS, and DVGW; MID-compliant per 2014/32/EU; IP68; measurement accuracy class 2.
| Equipment | |
|---|---|
| antenna | internal |
| Communication | |
| connectivity | LoRaWAN |
| frequency | EU868 |
| activation | OTAA |
| Power supply | |
| power supply | battery, included, not replaceable |
| General | |
| variants | DN100 or DN125 or DN150 or DN200 or DN65 or DN80 or DN50 |
| Certifications | |
| enclosure protection class | IP68 |
| MID Certificate | and |
| Drinking Water Certificate | ja |
| Others | |
| Brand | Sontex |
Datasheet-_Sontex-Superaqua5_EN.pdf
Download
