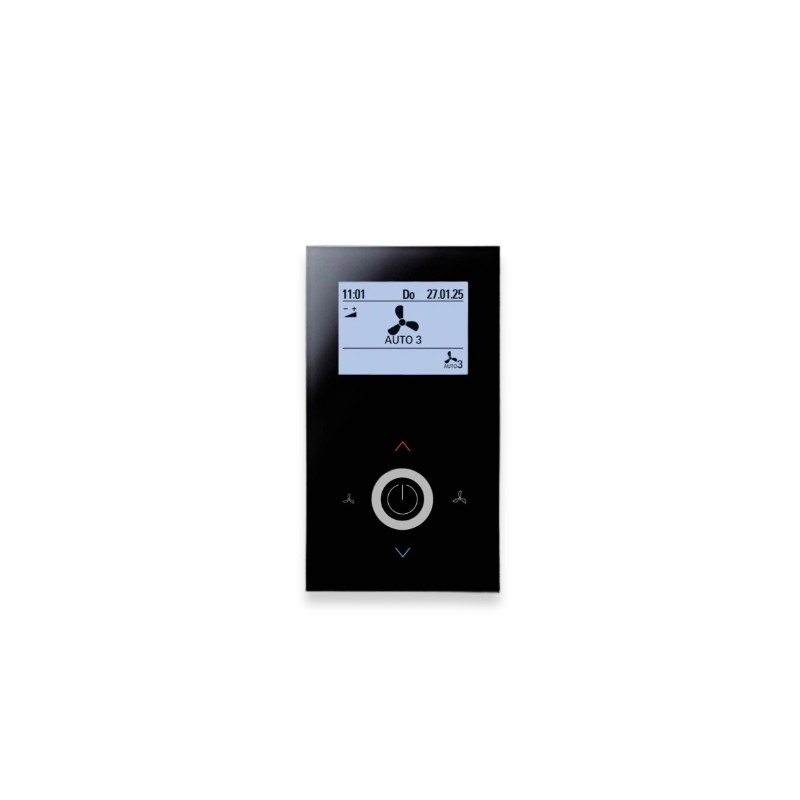

thermokon JOY Fan Coil 5DO 24V LoRaWAN Room Thermostat
SKU |
THK-851259 |
incl. 19.0% VAT plus Shipping costs
The Thermokon JOY FC 5DO 24V is a 24-V LoRaWAN fan coil room thermostat designed for individual temperature control in two- and four-wire fan coil systems with electric two-wire valves. The 2.5-inch touchscreen display enables intuitive operation, including 3 time programs, each with 4 time periods. Five normally open contacts control the three fan speed settings as well as the heating and cooling circuits. Optionally available with a humidity and CO₂ sensor. Configuration via uConfig software using a microSD card or LoRaWAN downlink; available in black or white. Flush-mounted in a standard EU junction box, IP30.
| Equipment | |
|---|---|
| antenna | internal |
| sensors | ambient temperature, air humidity, CO2, actuator status |
| Communication | |
| activation | OTAA, ABP |
| frequency | EU868 |
| interfaces | Software, Downlink |
| connectivity | LoRaWAN |
| Power supply | |
| power supply | power supply |
| General | |
| variants | schwarz or weiß |
| variants | Temperatur, Luftfeuchte, CO2 or Temperatur, Luftfeuchte |
| Certifications | |
| enclosure protection class | IP30 |
| Others | |
| Brand | thermokon |
DataSheet_thermokon-joy5do_EN.pdf
Download
