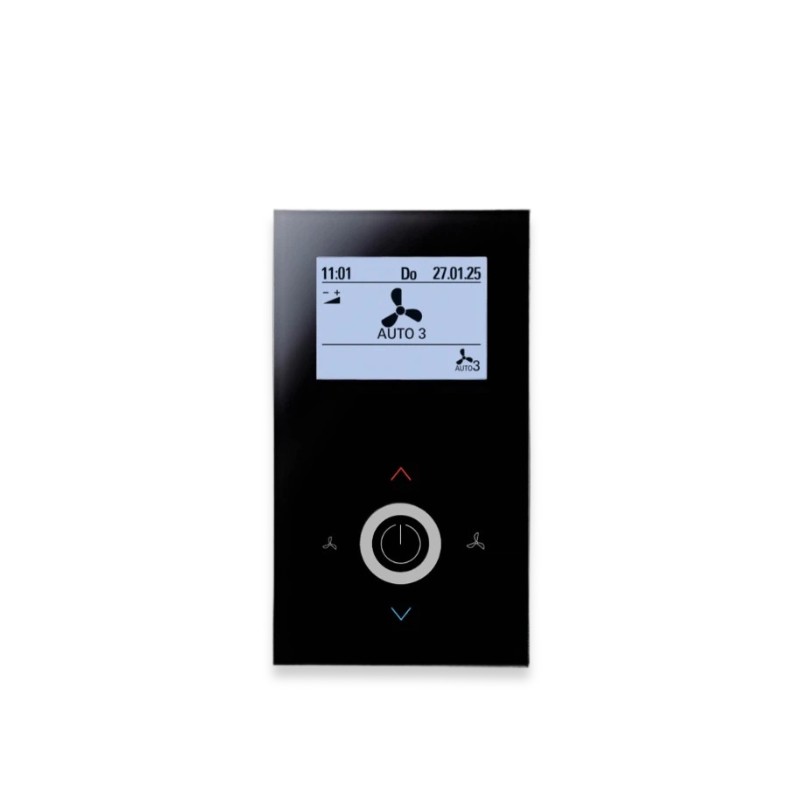

thermokon JOY Fan Coil EC AO2DO 230V LoRaWAN Room Thermostat
SKU |
THK-850899 |
incl. 19.0% VAT plus Shipping costs
The thermokon JOY Fancoil EC AO2DO room thermostat is designed to control fan coil units with EC fans. It is operated via its touch-sensitive interface and 2.5-inch LCD screen.
- Sets setpoints and fan speeds for 2-pipe and 4-pipe systems.
- Controls heating and cooling via two relays and controls fans with 0–10 V.
- Displays temperature, humidity, and, optionally, CO2 levels for higher-level analysis.
The device is flush-mounted in a standard EU outlet (Ø 60 mm). It operates on 85–260 V AC, has an IP30 protection rating in accordance with EN 60529, and supports LoRaWAN 1.0.3 Class C with OTAA and ADR. Configuration is possible via uConfig, a microSD card, or downlink. It is suitable for room control in offices, hotels, and similar buildings and ensures stable operation. The THK-850898 and THK-850897 models are available in black or white, while the THK-850899 and THK-850909 models include additional sensors.
| Equipment | |
|---|---|
| sensors | ambient temperature, air humidity, CO2 |
| antenna | internal |
| Communication | |
| frequency | EU868 |
| connectivity | LoRaWAN |
| interfaces | Software, Downlink |
| activation | OTAA |
| Power supply | |
| power supply | mains voltage |
| General | |
| variants | schwarz or weiß |
| variants | Temperatur, Luftfeuchte, CO2 or Temperatur, Luftfeuchte |
| Certifications | |
| enclosure protection class | IP30 |
| Others | |
| Brand | thermokon |
The device is designed for 2-pipe and 4-pipe systems, providing control for both heating and cooling valves as well as EC fan units.
The thermostat measures temperature (0 to +50 °C) and relative humidity (0 to 100%). Certain models also include a CO2 sensor with a measuring range of 0 to 2,000 ppm.
The device is available in black or white and offers two main sensor configurations: a standard version that measures temperature and humidity, and an optional model that includes an additional CO2 sensor.
The unit features a 2.5-inch backlit LCD screen with a resolution of 240x160 pixels, allowing users to adjust setpoints and control fan stages.
It provides one 0-10 V output for EC fan control and two normally open switch contacts for heating and cooling, supporting loads up to 500 mA at 240 V.
The device is flush-mounted using a standard 60 mm diameter EU box and requires a power supply of 85 to 260 V AC.
Configuration is handled via the uConfig Windows software. The settings can be transferred to the device using an SD card or remotely via LoRaWAN downlink.
