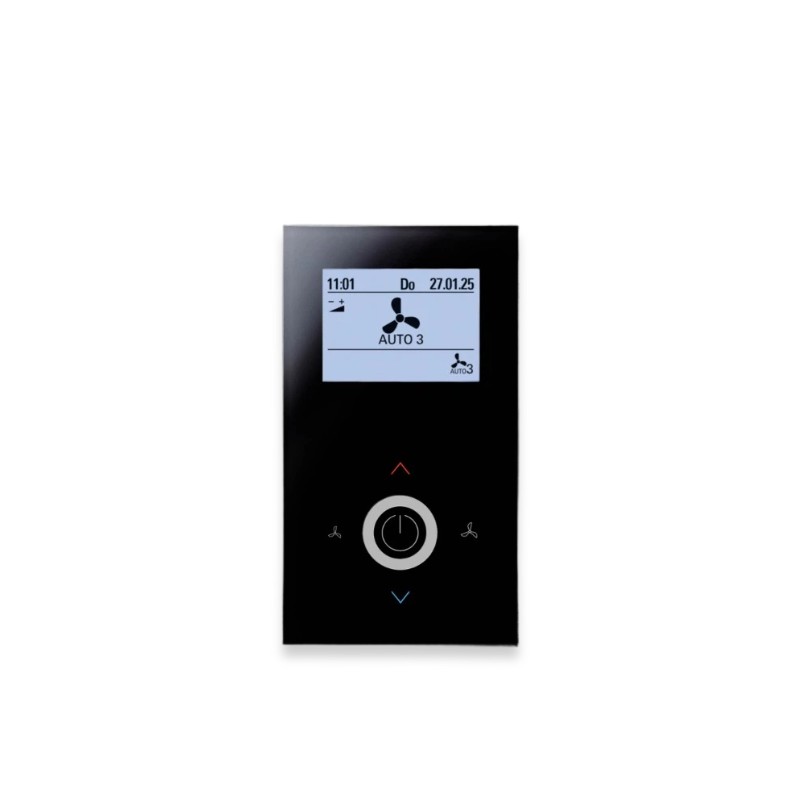

thermokon JOY Fancoil 5DO 230V LoRaWAN Fan Coil Unit
SKU |
THK-850919 |
incl. 19.0% VAT plus Shipping costs
The Thermokon JOY 5DO 230V is a mains-powered LoRaWAN fan coil room thermostat (85–260 V~, Class C, EU868) designed for individual temperature control in two- and four-wire fan coil systems with electric two-wire valves. The 2.5-inch touchscreen display enables intuitive operation, including 3 time programs, each with 4 time periods. Three normally open contacts control the fan speed levels, while two additional contacts regulate the heating and cooling circuits. Optionally available with a humidity and CO₂ sensor. Configuration via uConfig software using a MicroSD card or LoRaWAN downlink; available in black or white. Flush-mounted in a standard EU junction box, IP30.
| Equipment | |
|---|---|
| sensors | ambient temperature, air humidity, CO2 |
| antenna | internal |
| Communication | |
| connectivity | Digitaleingang, LoRaWAN |
| activation | OTAA |
| frequency | EU868 |
| interfaces | Downlink, Software |
| Power supply | |
| power supply | mains voltage |
| General | |
| variants | Temperatur or Temperatur, CO2 |
| variants | schwarz or weiß |
| Certifications | |
| enclosure protection class | IP30 |
| Others | |
| Brand | thermokon |
DataSheet_thermokon-joyCO2_EN.pdf
Download
