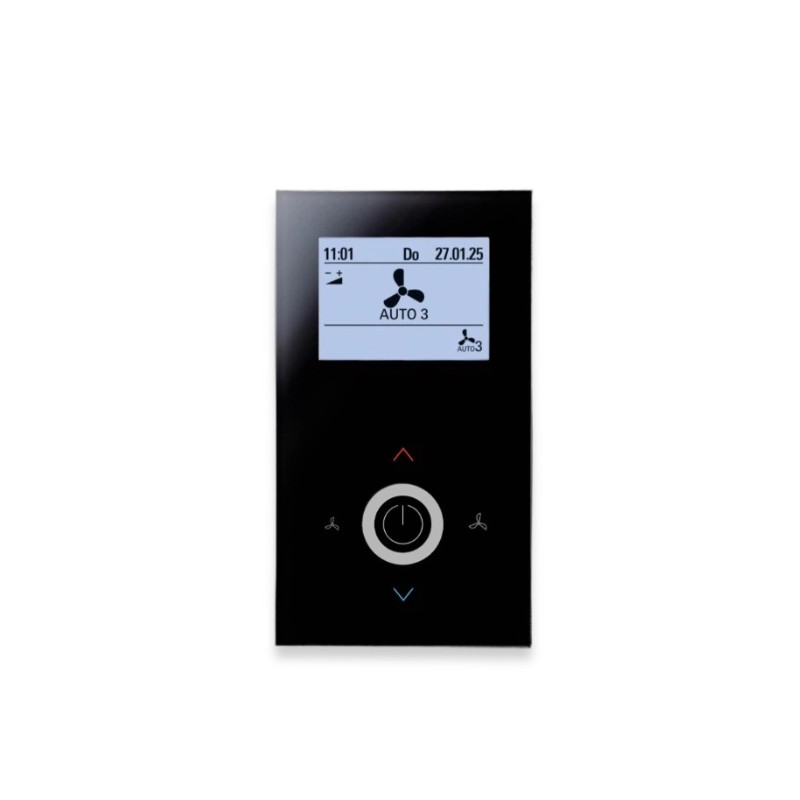

thermokon JOY Fancoil EC 3AO 24V LoRaWAN Room Thermostat
SKU |
THK-850915 |
incl. 19.0% VAT plus Shipping costs
The thermokon JOY Fancoil EC 3AO is a room controller designed to control fan coil systems and monitor indoor air quality. The user interface enables direct interaction with the user as well as automated control of indoor climate parameters:
- Controls EC fans and valves via three analog 0–10 V outputs for precise climate control.
- Monitors room temperature, relative humidity, and, optionally, CO2 levels to control ventilation based on actual needs.
- Connects external sensors via two built-in digital inputs to improve energy efficiency and safety.
This KNX-compatible controller operates on 24 V AC/DC and features built-in PI controllers for precise room temperature control. The flush-mounted device features a 2.5-inch backlit display for setting setpoints and fan speeds. It supports 6-way valve control and meets IP30 protection standards. Typical applications include offices and hotels. The device is available in the models THK-850915, THK-850912, THK-850913, and THK-850920 in various colors.
| Equipment | |
|---|---|
| sensors | ambient temperature, air humidity, actuator status, digital input, analog input, CO2 |
| Communication | |
| interfaces | Software |
| Power supply | |
| power supply | power supply |
| General | |
| variants | schwarz or weiß |
| variants | Temperatur, Luftfeuchte, CO2 or Temperatur, Luftfeuchte |
| Certifications | |
| enclosure protection class | IP30 |
| Others | |
| Brand | thermokon |
This room controller is designed for fan coil systems, providing measurement of temperature and humidity. Depending on the specific model, the device supports EC fan control and can manage heating and cooling systems or 6-way valve control.
The controller features three analog outputs (0..10 V, max. 5 mA) specifically for EC fan control and the regulation of heating and cooling or 6-way valves.
The device family measures temperature and humidity as standard, with CO2 measurement available as an optional feature across the product range.
Yes, the device housing is available in either a black or white finish to suit various interior designs.
The device operates on a power supply of 24 V DC (±10%) or 24 V AC (±10%) with a maximum power consumption of 2.5 W.
Yes, the unit provides two inputs: DI1 supports an NTC10k sensor or a floating contact, and DI2 is a digital input for a floating contact.
For models that include the CO2 monitoring feature, the sensor has a measuring range of 0 to 2.000 ppm.
