thermokon JOY HC 230V AO2DO CO2 LoRaWAN Room Thermostat

Price:

187.90 €
thermokon JOY HC 230V AO2DO CO2 LoRaWAN Room Thermostat
  2. Shop
  3. thermokon JOY HC 230V AO2DO CO2 LoRaWAN Room Thermostat
New

thermokon JOY HC 230V AO2DO CO2 LoRaWAN Room Thermostat

https://iot-shop.de/web/image/product.template/11623/image_1920?unique=b908628

187.90 € 187.9 EUR 187.90 €

Not Available For Sale

  • variants
  • Brand
  • frequency
  • connectivity
  • sensors
  • sensors
  • sensors
  • antenna
  • activation
  • power supply

This combination does not exist.

Contact Us
SKU
 THK-850594

incl. 19.0% VAT plus Shipping costs

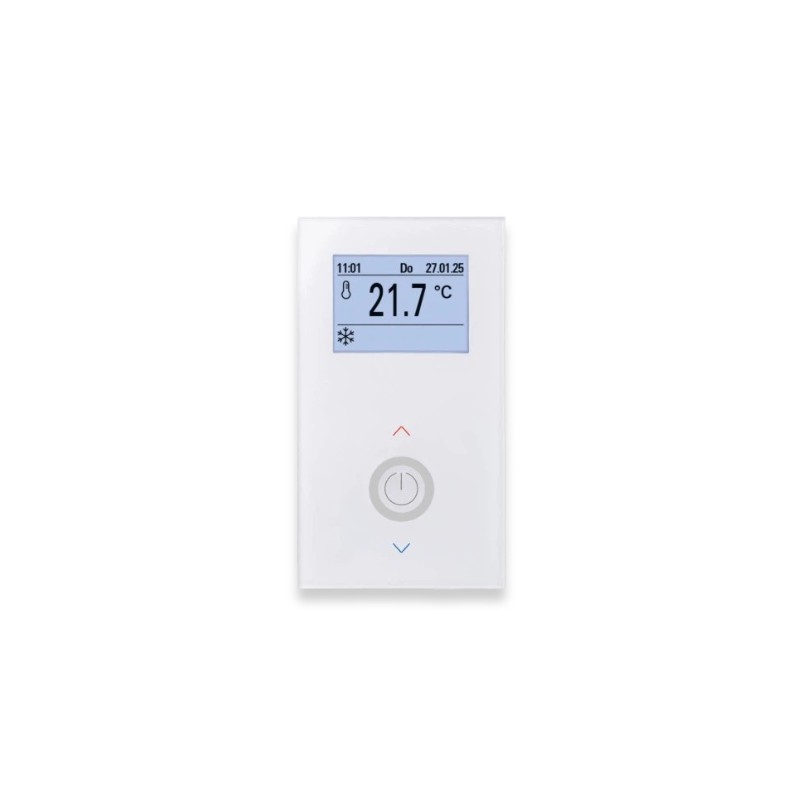

The Thermokon JOY HC AO2DO is a mains-powered LoRaWAN room thermostat (85–260 V~, Class C, EU868) for individual temperature control in commercial and residential buildings. The 2.5-inch touchscreen display (240 × 160 px, LCD with white backlight) enables intuitive operation—including 3 time channels, each with 4 time periods. The integrated PI and 2/3-point controller controls a 6-way valve via a 0–10 V output, as well as heating and cooling circuits via two normally open contacts (240 V).
Equipment
sensors ambient temperature, air humidity, CO2
antenna internal
Communication
frequency EU868
connectivity LoRaWAN
activation OTAA
Power supply
power supply mains voltage
General
variants schwarz or weiß
Others
Brand thermokon
DataSheet_thermokon-JOY-HC-AO2DO_EN.pdf
Download
What are the primary applications for this room thermostat?

The thermokon JOY HC AO2DO is designed for heating and cooling control as well as 6-way valve control in commercial and residential buildings, featuring a 2.5-inch touch surface for user interaction.
Which environmental parameters can the device measure?

The device measures temperature by default (0..+50 °C) and offers optional sensors for humidity (0..100% rH) and CO2 levels (0..2.000 ppm).
What color options are available for the device enclosure?

The device enclosure is available in two color options: black and white.
What type of control outputs are available for valve and temperature regulation?

The thermostat provides a 0..10 V output for 6-way valves and two normally open switch contacts (240 V, max. 500 mA) for heating and cooling control.
How is the device powered and installed?

The unit requires a power supply of 85..260 V AC and is designed for flush mounting in a standard EU box with a 60 mm diameter.
Does the device support external inputs?

Yes, it includes an input for an NTC 10 K sensor or floating contact, as well as a digital input for non-floating 230 V AC contacts.
How can the thermostat's parameters be configured?

Configuration can be performed using the uConfig Windows software, via an SD card, or remotely through LoRaWAN Downlink commands.
Can I program specific heating schedules on this device?

Yes, the thermostat supports three time channels with four configurable time periods each, which can be managed via the device menu.
