| Equipment | |
|---|---|
| antenna | internal |
| sensors | ambient temperature, air humidity, CO2, actuator status |
| Communication | |
| connectivity | LoRaWAN |
| frequency | EU868 |
| activation | OTAA |
| Power supply | |
| power supply | power supply |
| General | |
| variants | schwarz or weiß |
| variants | Temperatur, Luftfeuchte, CO2 or Temperatur, Luftfeuchte |
| Certifications | |
| enclosure protection class | IP30 |
| Others | |
| Brand | thermokon |

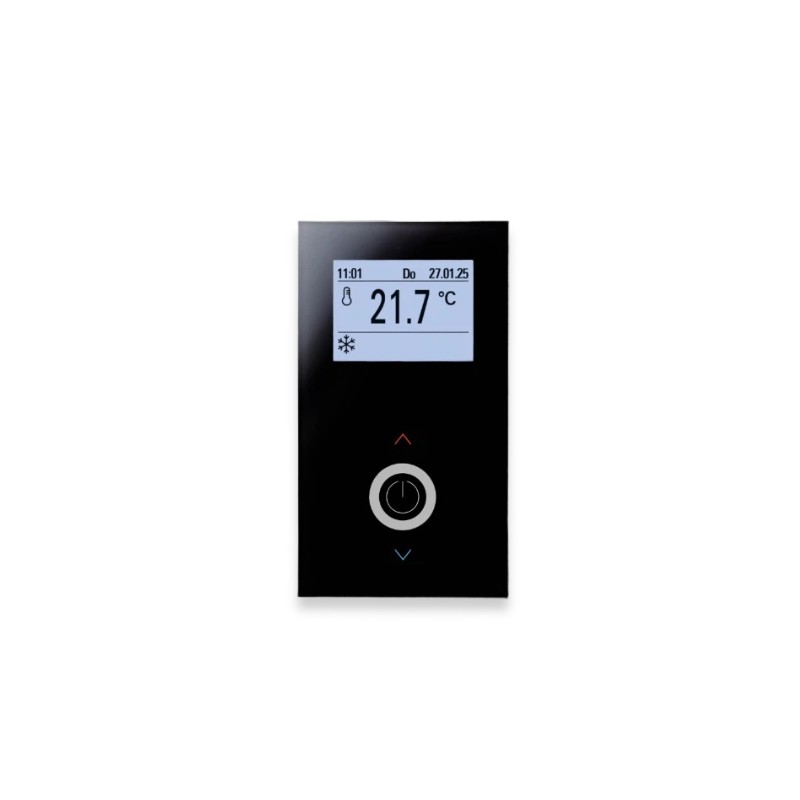

The device is available in black or white housing and comes in two main functional configurations: one that measures temperature and humidity, and another that also includes CO2 monitoring capabilities.
The device is designed for individual temperature control in commercial and residential buildings. It supports heating and cooling systems and features specific control for 6-way valves via a 2.5-inch touch surface.
The thermostat measures temperature from 0 to +50 °C with ±1 K accuracy and humidity from 0 to 100% rH with ±2% accuracy. For models with CO2 functionality, the range is 0 to 2,000 ppm with an accuracy of ±5% of the measured value plus 50 ppm.
The unit is equipped with a 240x160 pixel LCD display (60x44 mm) featuring white backlighting and a touch-sensitive surface for local interaction and setpoint adjustments between 0 and +50 °C.
The thermostat provides a 0..10 V DC output for 6-way valves and two normally open switch contacts for heating and cooling with a maximum load capacity of 3 A at 24 V.
The device operates on a 24 V AC/DC power supply and is designed for flush mounting using a standard EU box with a 60 mm diameter.
Yes, it includes two inputs: DI1 can be used for an NTC 10 K sensor or a floating contact, while DI2 serves as a digital input for non-floating 230 V AC contacts.
Configuration is performed via the uConfig software for Windows. As a LoRaWAN Class C device, it supports both heartbeat intervals and transmission based on value changes or hysteresis settings.
