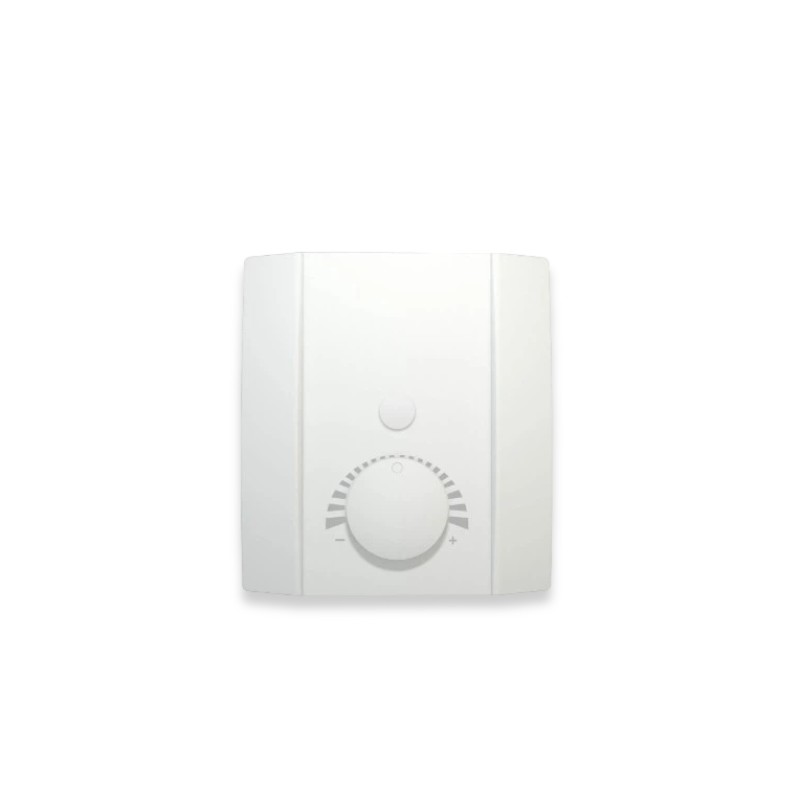

thermokon 824248 NOVOS 3 PT LoRaWAN Room Controller
SKU |
THK-824248 |
incl. 19.0% VAT plus Shipping costs
The Thermokon NOVOS 3 PT LRW is a modern, battery-powered room control unit featuring LoRaWAN wireless technology for reliable monitoring of temperature and humidity. In addition, the PT version features an integrated potentiometer for setpoint adjustment, allowing for convenient on-site adjustment of the room climate. The measured values and the setpoint are transmitted wirelessly via LoRaWAN and can be flexibly integrated into building automation and energy management systems. Thanks to its compact design, simple wall mounting, and separate base plate, installation is quick and easy. With a battery life of up to 5 years, the NOVOS 3 PT LRW is ideal for energy-efficient and low-maintenance applications in offices, hotels, or public buildings.
| Equipment | |
|---|---|
| sensors | ambient temperature, air humidity |
| antenna | internal |
| Communication | |
| interfaces | USB, App, Downlink |
| connectivity | LoRaWAN |
| activation | OTAA |
| frequency | EU868 |
| Power supply | |
| power supply | battery, included, replaceable |
| battery details | Lithium-Thionylchlorid, nicht aufladbar, ER14505, LS14500 |
| number of batteries | 1 |
| Certifications | |
| enclosure protection class | IP20 |
| Others | |
| Brand | thermokon |
The unit is designed to combine room setpoint adjustment via a potentiometer with a dedicated button for presence signaling.
The device is designed for room automation and building control applications that require setpoint adjustment and presence detection signaling.
Data is transmitted according to the configured heartbeat and measurement intervals. Additionally, information such as button status and measured values are communicated via the LoRaWAN network based on these settings.
The unit can be surface-mounted either on a standard 60 mm flush-mounting box or directly onto a flat wall surface.
The device is powered by a single 3.6V AA lithium battery (LS14500 or ER14505), which typically lasts for approximately 5 years.
The device is rated for ambient temperatures between -20 and +70 °C and a maximum relative humidity of 85% non-condensing.
Configuration can be carried out using a Micro-USB cable, a Bluetooth connection via the LRWApp, or remotely through LoRaWAN downlinks.
