thermokon NOVOS 3 T Room Control Unit

Price:

197.42 €
thermokon NOVOS 3 T Room Control Unit
  2. Shop
  3. thermokon NOVOS 3 T Room Control Unit
New

thermokon NOVOS 3 T Room Control Unit

https://iot-shop.de/web/image/product.template/11611/image_1920?unique=2f3e85b

197.42 € 197.42 EUR 197.42 €

Not Available For Sale

  • Brand
  • activation
  • antenna
  • battery details
  • battery details
  • battery details
  • battery details
  • number of batteries
  • frequency
  • enclosure protection class
  • interfaces
  • interfaces
  • interfaces
  • connectivity
  • sensors
  • sensors
  • power supply

This combination does not exist.

Contact Us
SKU
 THK-824255

incl. 19.0% VAT plus Shipping costs

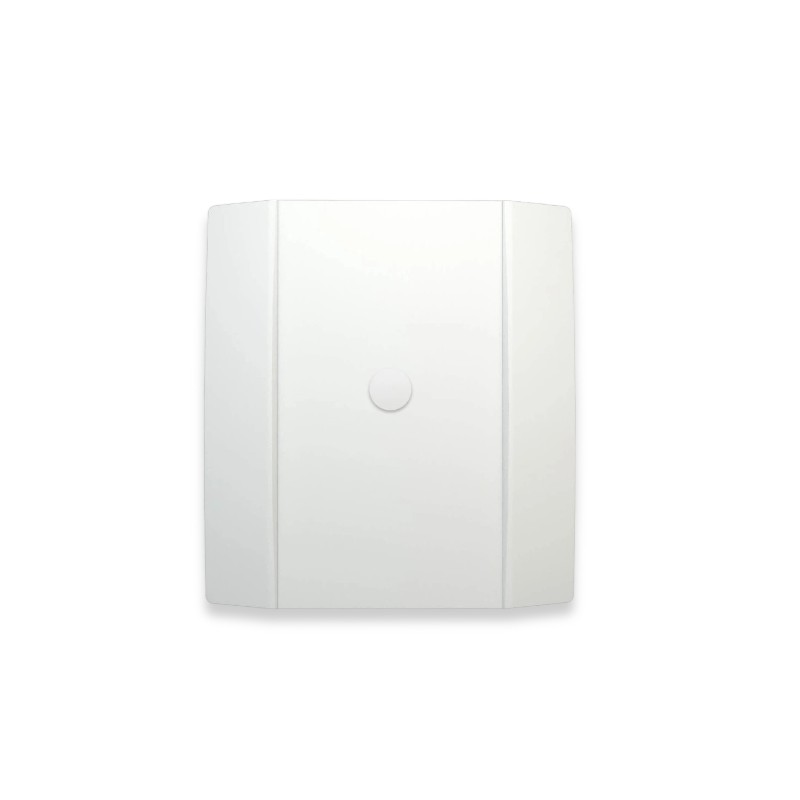

The Thermokon NOVOS 3 T LRW is a battery-powered LoRaWAN® room control and temperature sensor designed to measure and wirelessly transmit room temperatures in buildings. The device is suitable for applications in building automation, energy management, and for monitoring office, school, and administrative spaces. The measured values are transmitted to a central system via LoRaWAN® (EU868). Thanks to power from a 3.6-V lithium AA battery, off-grid operation is possible with a battery life of up to five years. The sensor measures temperatures from -20 to +70 °C with a typical accuracy of ±0.4 K. Communication takes place via LoRaWAN Class A with OTAA and ADR. The housing is designed for wall mounting on flush-mounted boxes or directly on surfaces and has an IP20 protection rating. Configuration can be performed via Micro-USB, a Bluetooth app, or a LoRaWAN downlink. The NOVOS 3 T LRW is specifically designed for energy-efficient and low-maintenance building monitoring.
Equipment
antenna internal
sensors ambient temperature, air humidity
Communication
activation OTAA
frequency EU868
interfaces Downlink, Bluetooth, micro USB
connectivity LoRaWAN
Power supply
battery details AA, Lithium-Thionylchlorid, nicht aufladbar, LS14500, ER14505
number of batteries 1
power supply battery, included, replaceable
Certifications
enclosure protection class IP20
Others
Brand thermokon
DataSheet_Thermokon-Novos3_EN
Download
What primary functions does this room operating unit perform?

The device is designed for monitoring room temperature and humidity, with optional CO2 monitoring. It specifically features a dedicated button (T) for manual presence detection signaling.
What is the accuracy and range for the environmental sensors?

The temperature sensor offers an accuracy of +/- 0.4K (typ. at 21 °C) across a range of -20 to +70 °C. Humidity is measured from 0 to 100% rH with +/- 2% accuracy between 30% and 70% rH. CO2 levels are measured up to 5000 ppm with an accuracy of +/- 50 ppm + 3% of the reading.
What are the physical dimensions and environmental protection ratings of the enclosure?

The device measures 100.5 x 109 x 23 mm and is housed in a PC V0 pure white enclosure. it has a protection rating of IP20 and is designed for ambient conditions between -20 and +70 °C with a maximum of 85% non-condensing relative humidity.
How is the device installed on a wall?

The unit is designed for flexible installation; it can be surface-mounted directly onto a standard flush-mounting box or mounted flat on a surface using screws.
What power source is required and how long will it last?

The device is powered by a single 3.6V AA lithium battery (LS14500 or ER14505). Depending on the specific configuration and transmission settings, the battery life is approximately 5 years.
How can I configure the measurement intervals and transmission settings?

Data transmission parameters such as the heartbeat, measurement intervals, and hysteresis are configurable. You can adjust these settings using a Micro-USB cable, a Bluetooth radio connection, or via LoRaWAN downlink commands.
