Adeunis ARF8170BCA-B01 LoRaWAN Door/Window Sensor
SKU |
TX-ARF8170BCA-B01 |
incl. 19.0% VAT plus Shipping costs

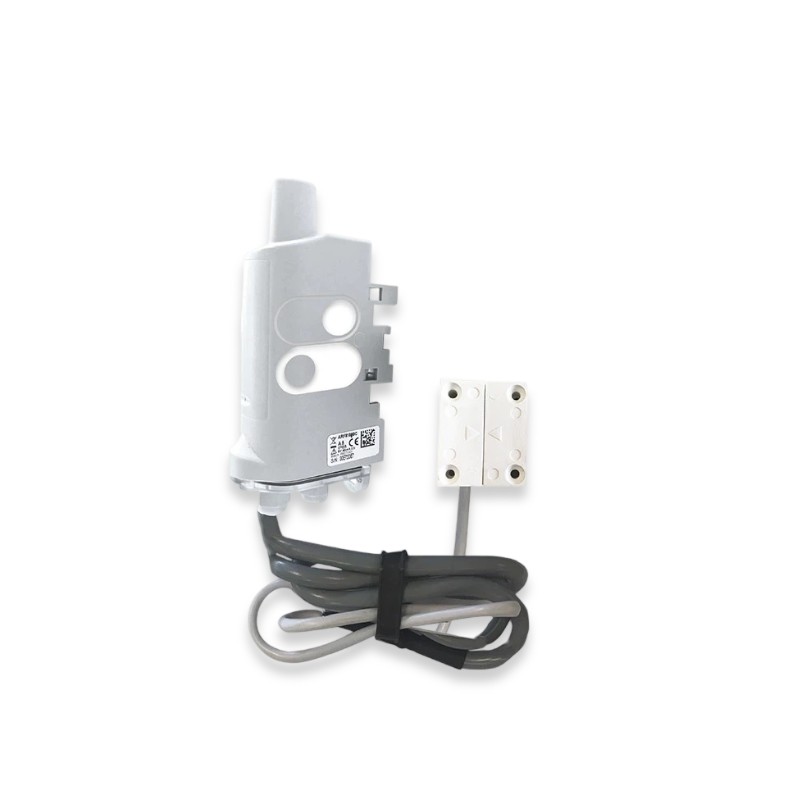

The Adeunis LoRaWAN Contact Sensor IP68 (ARF8170BCA-B01) is a reliable solution for monitoring open and closed states in industrial and commercial applications. Thanks to its rugged IP68 design, the sensor is ideal for demanding environments such as cold storage rooms, server rooms, or technical facilities. It reliably detects doors, windows, or hatches and also measures the duration of open states, e.g., for refrigerator doors.Data transmission is event-based or cyclical via LoRaWAN (EU868) and is secured by AES-128 encryption. With a battery life of over 10 years, simple configuration (local or remote), and alarm functions for tampering or low battery, the sensor offers an efficient and low-maintenance IoT solution for modern monitoring.
| Equipment | |
|---|---|
| antenna | internal |
| sensors | opening status (magnetic contact) |
| Communication | |
| activation | OTAA, ABP |
| frequency | EU868 |
| interfaces | Downlink, Herstellerlösung |
| connectivity | LoRaWAN |
| Power supply | |
| number of batteries | 1 |
| battery details | Lithium, nicht aufladbar |
| power supply | battery, included, replaceable |
| Certifications | |
| enclosure protection class | IP68 |
| Others | |
| Brand | Adeunis |
The sensor is designed to monitor openings and closures for applications such as refrigerator monitoring, smoke extraction hatch detection, and intrusion detection in technical rooms.
Yes, the sensor features an IP68-rated enclosure and can operate in temperatures ranging from -25°C to +70°C with humidity levels up to 85%.
The device is versatile and can be installed using a DIN Rail, Tube, Wall, or Collar mounting system.
It is powered by a replaceable battery or an external power supply. With a standard configuration, the battery life is expected to exceed 10 years.
Local configuration is done via the IoT Configurator, while remote configuration is available through network downlinks or the KARE platform. The device also supports firmware updates through KARE+.
Data transmission is triggered whenever a change of state is detected or automatically every 12 hours.
Yes, the sensor includes an error management system that warns of product errors, configuration errors, and low battery status.
Yes, a network quality test feature is available at start-up to ensure the device is correctly connected to the network.
