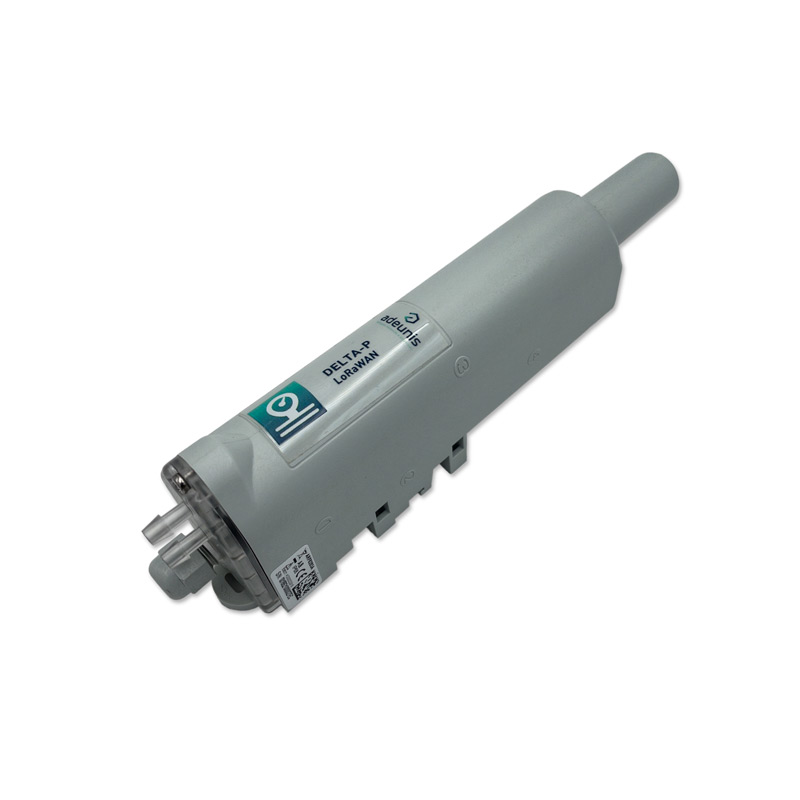

Adeunis ARF8283AA Delta P Air Pressure Differential Sensor
SKU :
TX-ARF8283AAexcl. 19% VAT plus Shipping costs
The Adeunis Delta-P air pressure sensor ARF8283AA registers air pressure differences between two areas, for example the difference between atmospheric pressure and a ventilation box. It can be connected directly to an existing ventilation system by means of 2 hoses. The measuring range is +/- 500 Pa with a measuring resolution of +/- 25 Pa. In addition, the device has 1 x analogue 0 - 10V input, as well as 2 digital dry contact inputs and outputs, for example to detect a power failure using a measuring clamp.
| Communication | |
|---|---|
| Frequency | EU868 |
| Connectivity | LoRaWAN |
| Power supply | |
| Power supply | Battery |
| Power supply details | AA |
| Number of power supplies | 1 |
| Measurement parameters | |
| Measurement accuracy | +/- 25Pa |
| Certifications | |
| Certifications | IP68, EN 609050, EN 300-220, EN 301-489 |
| Weights / dimensions | |
| Dimensions | 200 x 63,5 x 34 mm |
