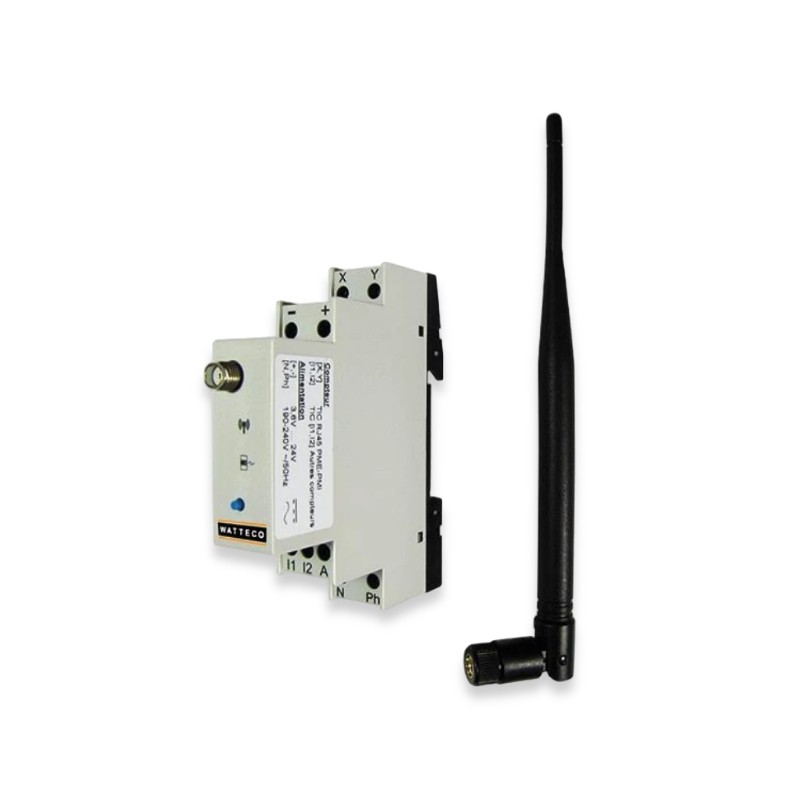

TheWatteco TICS’O transforms ENEDIS electronic electricity meters into networked IoT devices and reliably transmits the data to a remote server. It automatically detects the connected meter and adapts to communication speeds ranging from 1,200 to 19,600 baud, decoding and analyzing all TIC data fields. The sensor supports up to six individually configurable reports, data compression, and flexible transmission modes such as periodic, on data change, or via “Request/Response.” Power is supplied via 230 V AC, 3.6–24 V DC, or directly via the LINKY meter. With an external SMA antenna connection, DIN rail mounting, easy configuration via server, and battery life of over 6 years, TICS’O is ideal for smart energy management solutions and remote monitoring of electricity consumption.
| Equipment | |
|---|---|
| sensors | power consumption |
| antenna | external |
| Communication | |
| frequency | EU868 |
| connectivity | LoRaWAN |
| interfaces | Downlink |
| activation | OTAA, ABP |
| Power supply | |
| power supply | mains voltage, power supply |
| Certifications | |
| enclosure protection class | IP20 |
| Others | |
| Marke2 | WATTECO |
