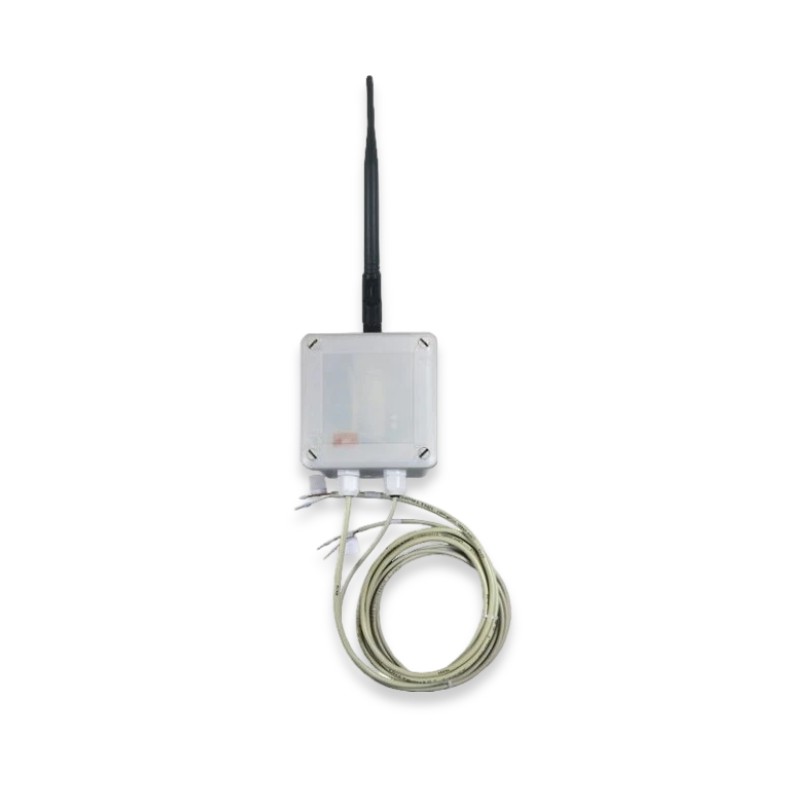

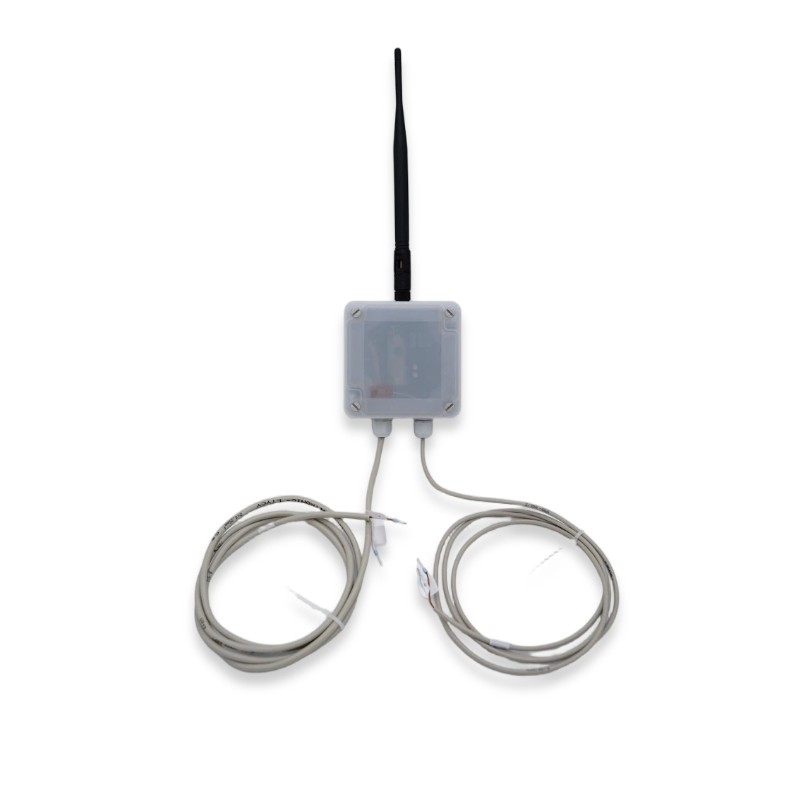

The Watteco MONIT’O is a standalone LoRaWAN Class-A sensor designed for reliable remote monitoring of battery voltage and current, as well as rectifiers used for cathodic corrosion protection. With two galvanically isolated analog inputs for 0–70 V and 0–100 mV, it enables precise measurements of 12 V, 24 V, and 48 V battery systems in industrial and smart metering applications. The measurement data is stored locally, compressed, and transmitted energy-efficiently via LoRaWAN®. Thanks to its IP55-rated housing, AES128 encryption, and a battery life of over ten years, MONIT’O is ideal for long-term use in harsh environments.
| Equipment | |
|---|---|
| sensors | analog input |
| antenna | external |
| Communication | |
| frequency | EU868 |
| connectivity | LoRaWAN |
| activation | OTAA, ABP |
| Power supply | |
| power supply | battery, included, not replaceable |
| battery details | Lithium, nicht aufladbar |
| number of batteries | 1 |
| Certifications | |
| enclosure protection class | IP55 |
| Others | |
| Marke2 | WATTECO |
Datasheet_WATTECO-MONITO_EN.pdf
Download
