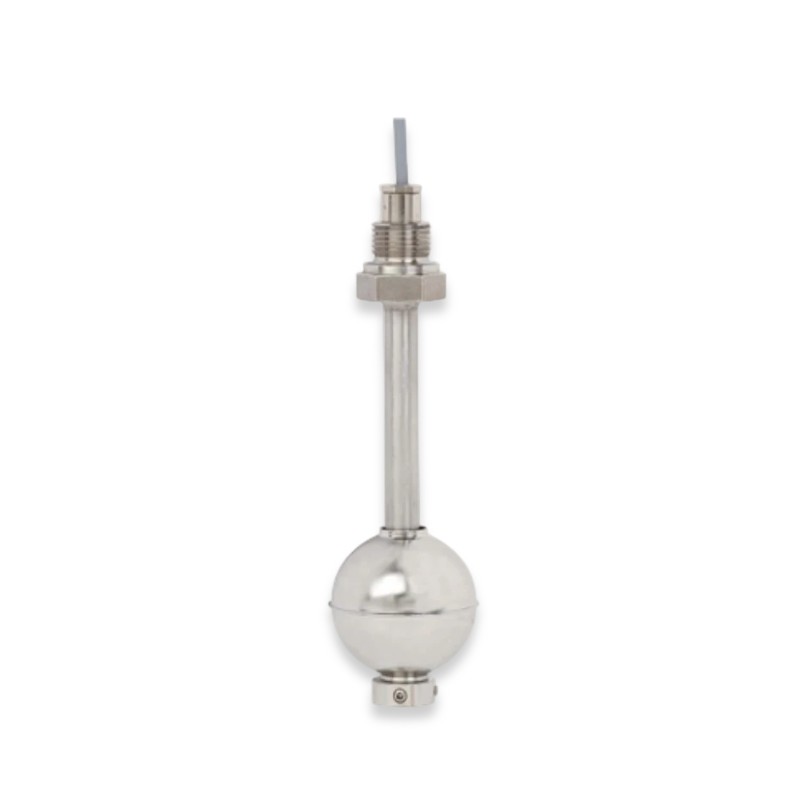

The WIKA RLS-3000 is a rugged float-type magnetic switch with an integrated Pt1000 temperature output (2-wire) for reliable level and temperature monitoring in industrial applications. With a slide tube length of 100 mm and a changeover contact output at a 55 mm switching position, the sensor is ideally suited for liquid media. The 316 stainless steel cylindrical float and all media-contacting components made of 1.4571 CrNi steel ensure high chemical resistance and durability. Connection is via a 4-pin M12 connector and a G 1/2 process connection, designed for media temperatures ranging from −30 °C to +120 °C.
| Equipment | |
|---|---|
| sensors | water level (magnetic field), Flüssigkeitstemperatur |
| Power supply | |
| power supply | Geräteverbindung |
| Certifications | |
| enclosure protection class | IP67, IP66, IP65 |
| Others | |
| Marke2 | WIKA |
