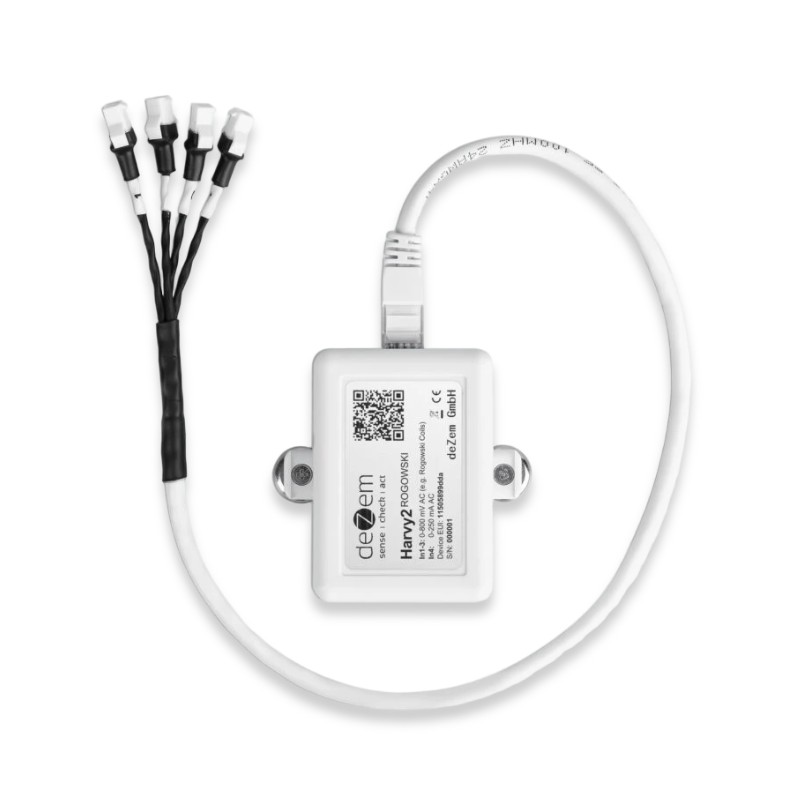

deZem Harvy 2 Rogowski LoRaWAN Energy Sensor
SKU |
DZM-HARVY-ROGOWSKI-EA |
incl. 19.0% VAT plus Shipping costs
The Harvy2 ROGOWSKI is a battery-free LoRaWAN IoT sensor from deZem designed for comprehensive monitoring of the electrical supply. It measures active power, active energy, effective current, reactive and apparent power, line voltage, and frequency via three inputs for Rogowski coils—which are flexible, bendable, and lightweight—as well as an input for a voltage transformer for power supply. The sensor is suitable for stationary and mobile use; simple installation via a plug-in system or optional magnet, intelligent event filters, and configuration via USB-C enable measurements accurate to the second, data visualization, and firmware updates. Available with an internal or external antenna, IP20-rated, compact, and maintenance-free.
| Equipment | |
|---|---|
| antenna | external, internal |
| sensors | electricity |
| Communication | |
| frequency | EU868 |
| connectivity | LoRaWAN |
| interfaces | USB |
| Power supply | |
| power supply | Geräteverbindung |
| General | |
| variants | Antenne extern or Antenne intern |
| Certifications | |
| enclosure protection class | IP20 |
| Others | |
| Marke2 | deZem |
Datasheet_deZem-Harvy2-Rogowski_DE.pdf
Download
