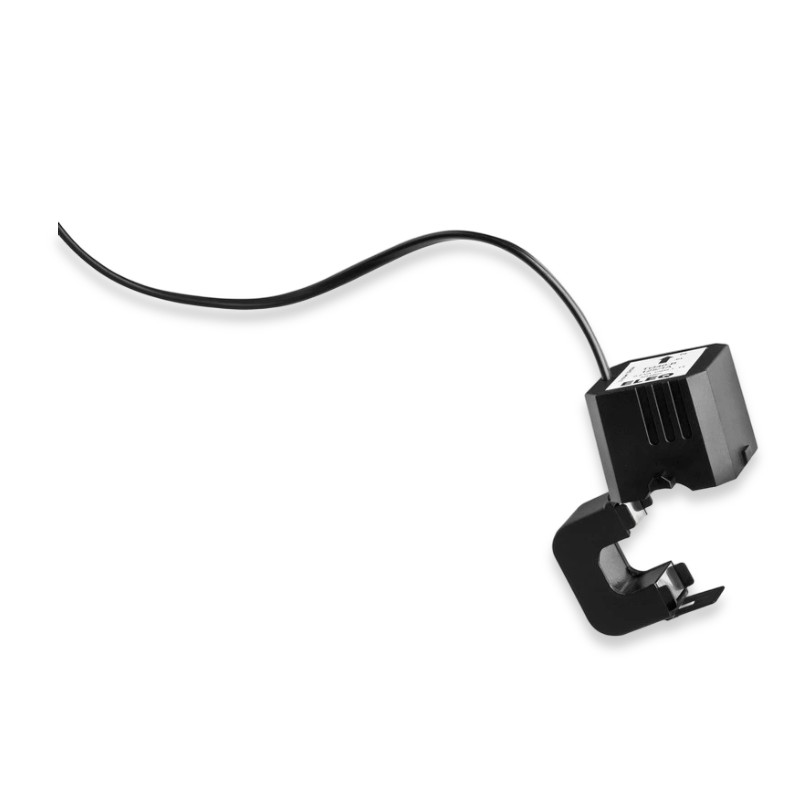

The EMU TQ40-C is a compact, split-core current transformer for digital measurement systems. Accuracy class 1 (IEC 60044-1) ensures precise measurements; the maximum load is 0.2 VA at the cable end. Color-coded cables (0.5 mm², 3 m) simplify installation; a cable opening of Ø28 mm allows for mounting, and an audible “click” confirms the correct position. The housing is made of PVC, and the dimensions are 67 × 45 × 49 mm.
| Equipment | |
|---|---|
| sensors | electricity |
| General | |
| variants | 300/1A or 200/1A |
| Others | |
| Marke2 | EMU |
