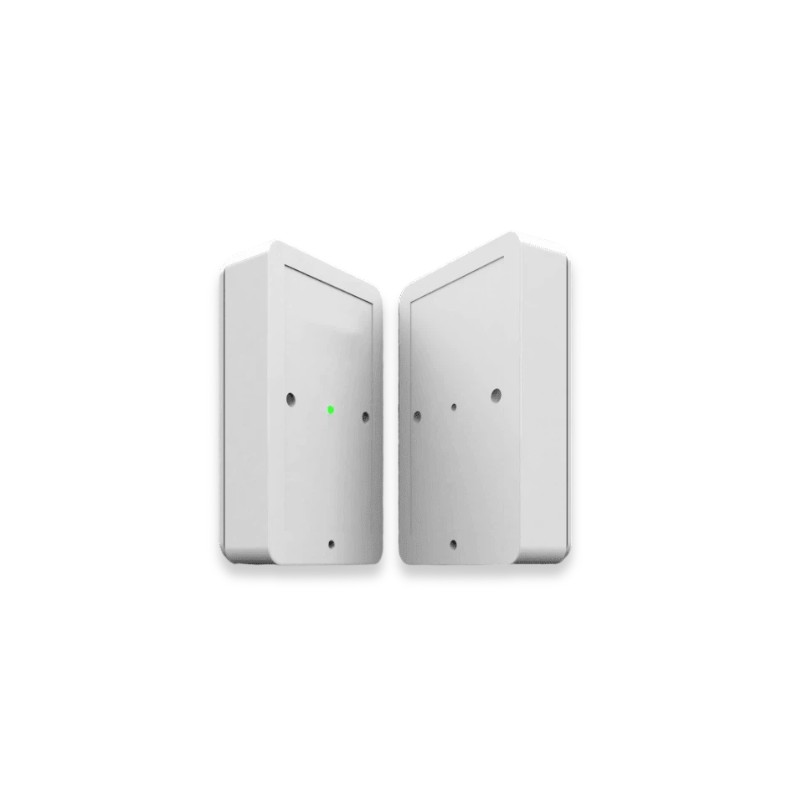

The IMBuildings EnOcean People Counter is a smart people counter that accurately tracks visitor traffic indoors. Powered by two AA alkaline batteries (1.5 V), it has a battery life of approximately one year. The sensor reliably detects entries and exits via an IR counting line of up to 8 meters, even in environments with background noise, thanks to enhanced noise immunity. Configuration is convenient via NFC, and data is transmitted via the EnOcean protocol (Payload: 4BS EEP A5-12-00). The compact housing measures 116 × 69 × 22 mm, is made of white ABS, and is optionally available with black covers. The counter data can be easily integrated into various dashboards or cloud solutions to visualize visitor flows and efficiently optimize space.
Batteries are not included!
Batteries are not included!
| Equipment | |
|---|---|
| antenna | internal |
| sensors | people counter |
| Communication | |
| frequency | EU868 |
| connectivity | LoRaWAN |
| interfaces | NFC |
| Power supply | |
| power supply | battery, not included, replaceable |
| battery details | AA, Alkaline, nicht aufladbar |
| number of batteries | 2 |
| General | |
| variants | schwarz or weiß |
| Others | |
| Brand | IMBuildings |
DataSheet_IMBuildings-IB039_EN.pdf
Download
