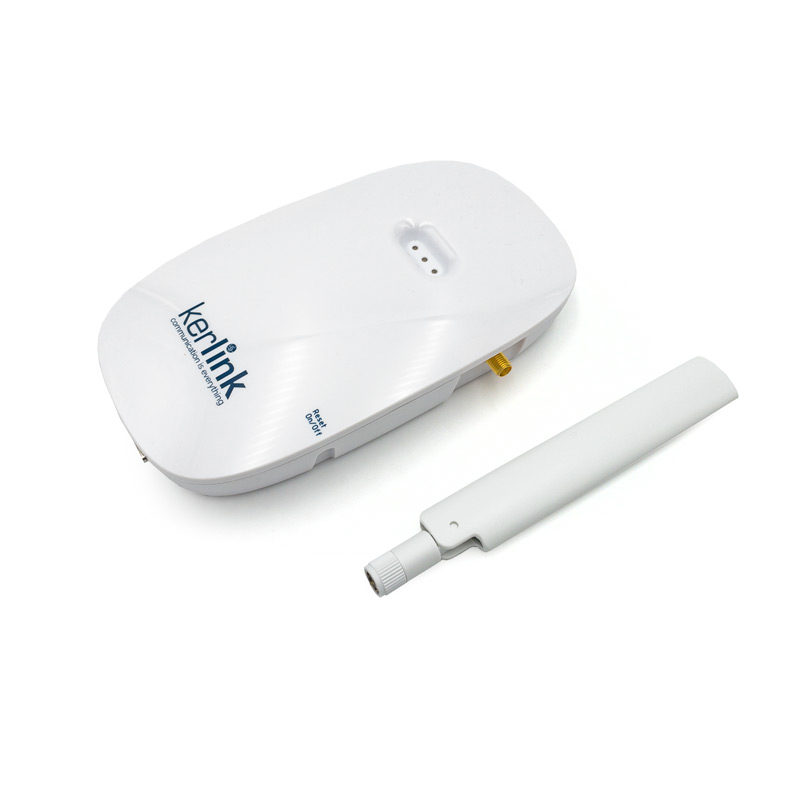

Kerlink's indoor gateways are characterized by reliably high performance. This also applies to the latest iFemtocell evolution, which enables complex indoor IoT networks. This gateway impresses with a simple, functional design and an integrated LTE antenna. Applicable in the areas of Smart Cities, Smart Building, Smart Metering, Smart Agriculture, Smart Environment and many more!
Scope of delivery: Gateway + power supply + LoRa antenna
| Communication | |
|---|---|
| frequency | EU868 |
| connectivity | Ethernet, 4G, LoRaWAN |
| Power supply | |
| power supply | power supply |
| Certifications | |
| enclosure protection class | IP30 |
This gateway is designed for Internet of Things (IoT) applications, providing LoRaWAN network connectivity. It supports data backhaul via Ethernet or 4G/3G cellular, and offers remote and system management capabilities, including packet forwarding.
The gateway requires a 12Vdc power supply with a current of 0.5A. It uses a jack connector for power input and must be powered by a limited power source.
The gateway includes a Jack connector for power, USB A for configuration, USB C for debug probe and configuration, USIM connector for 4G/3G cellular, RJ45 Ethernet port, and SMA connector for the LoRa antenna.
The operating temperature range is -20°C to +55°C.
Additional documentation can be found at wikikerlink.fr.
